KW9001AP/KW9002AP

CAPSULE

CHECKWEIGHERS



- High Accuracy ± 2 mg

- Capacity of 120000 capsules/h (KW9001 AP)



Increased speeds, higher degree of measurement accuracy …

Capsule checkweighers with enhanced measuring capabilities now available.

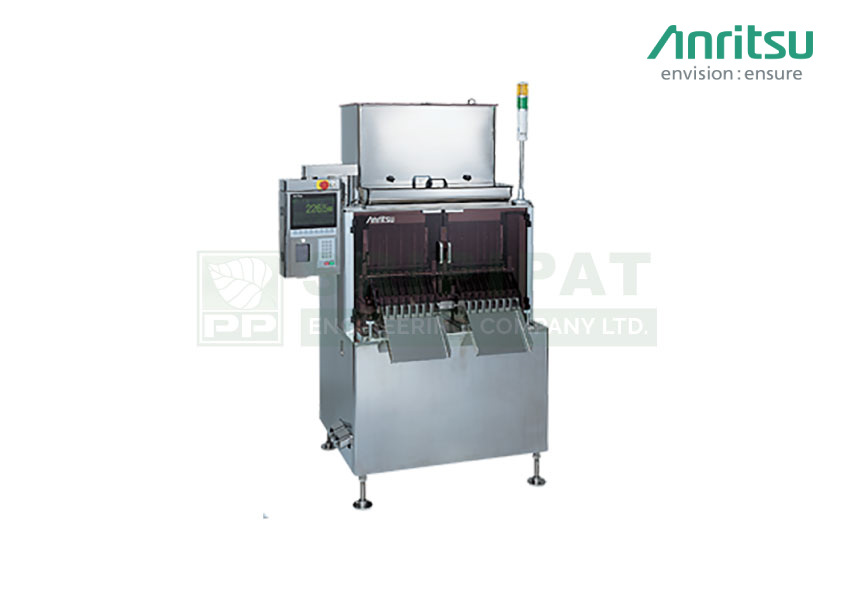

Anritsu KW9001 AP and KW9002AP capsule checkweighers feature unprecedented operational speeds and accuracy.

The new interactive indicator unit allows for even easier use.

Advanced rejection confirmation, total screening data storage and easy cleaning are also featured and meet GMP standards and validation requirements.



High-speed Operation and Increased Accuracy



- High-speed,extremely accurate measurement performance at 120000 capsules per hour (KW9001AP model) with an accuracy of plus or minus 2 mg is achieved.

- Weighs capsules from 20 mg to 1000 mg.

- Maintains high precision with automatic weigh table cleaning and zero setting performed at regular intervals.

- A vibration-proof weighcell and variable cut-off digital filter (VCF) prevent floor vibrations. Dummy cell to eliminate vibrations are not used, allowing for easy maintenance.



Reliable and Safety-Assured



- The fail-safe rejection gate has been specially designed to maintain the NG direction and operate only when OK capsules pass.

- Capsule feeding is controlled by a single drive mechanism, allowing for increased reliability and power saving.

- Self-diagnosis feature performs ROM/RAM check automatically when power is on.

- changing capsule sizes is easy using a single tool to change the magazine, V-rail and pusher units. Each unit is also designed for easy cleaning and maintenance.



Automated Operation



- The RS232C interface and control input/output terminals are provided as standard.

- Data management is easy. Stored data, general and alarms, can be processed.

- A lower-level sensor alerts the operator when residual capsule volume in the main hopper falls to its prescribed level. Installation of an up-per-level sensor allows capsule feeding to be controlled for maximum efficiency.



Validation



- Measurement accuracy can be confirmed and data stored as statistical data for each batch of 60 capsules.

- The reject gate motion is checked and auto-zero setting is performed prior to the start of operation.

- An interactive system allows for error less sensitivity calibration.

- Test validation and results available



Advanced State-of-the-art Monitor Functions






Rejection

gate monitor








Weighcell






Defective

%

monitor




Monitors rejection


gate for proper


operation.



Monitors the weighcell


to insure zero position



Monitors defective rate


percentages for each feed line.






























Capsule

flow








Printer






Battery

voltage






Monitors capsule


feeding on all lines


and alerts to jams.



Monitors printer and


sends an alert when


printer is out of paper


or jams occur



Monitors battery voltage,


to insure uninterrupted


storage of reference values and


other parameters. Sends alert


when time for batter


replacement.













































Motor




Air





Monitors motor to



insure smooth operation.


Alerts sent for any


motor-related abnormality.



Monitors air pressure


used for weigh table cleaning.


Alert sent if pressure falls below


specified pressur.

























































Easy operation.

The display panel is user-friendly and easy to operate.



Control Panel / Display Unit



- Large, easy-to-read electro luminescence (EL) display screen.

- A printer is provided as a standard.

- All operations and displays can be performed interactively.

- Reference, upper- and lower-level values, item name and lot numbers for up to 20 different capsule types can be set. Product item changeover can be done by the touch of a key.

- Capsule damping waveforms can be monitored on the display, enabling measurement timing confirmation on a real-time basis.

- Password function is provided for secure production.

- Console position can be flexible according to installation requirements.



Operation monitoring and data management the Anritsu way.



X-R/s display

Screening data along with average value, scatter and standard deviation for each line, can be monitored.



Sensitivity calibration screen

Calibration is simple after placing a reference weight on the balance.



Operational record screen

Information regarding operational management can be monitored easily



Error alarm message screen

An error alarm message and action required.



Pre-setting screen

The reference, upper-limit and lower-limit values, item name and lot numbers for up to 20 different capsule types can be set.



Data Recording System (Software) KW2051A

Capsule checkweigher measurement data can be displayed in MS-Excel 95/97

KW2051A slows capsule checkweigher measurement data to be displayed in MS Excel. Data transferred into Excel can be used to create graphs, charts, and daily and monthly reports. Screening data can also be stored, useful for GMP, validation and other data management purposes.





Statistical Analyses

Pass / Fail data

Pass data

X-R/s data

Weight / Retrievable data



Specifications



Maximum speed

2,500 producs/min. All lines

Maximum number of storable pieces

According to PC disk space, 30,000 data/1Mbite

Controls

Start/stop, item changeover, limit value setting

System environments

PC98, IBM compatible (Pentium 133MHz or faster), Windows ®95/98,Microsoft MS-Excel 95/97

Connection distance

Maximum 1 km













Download K3067-C-1_capsuleCW
